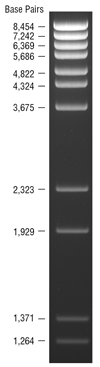

λ DNA-BstEII Digest

The following reagents are supplied with this product:

NEB #	Component Name	Component #	Stored at (°C)	Amount	Concentration
N3014S     -20       λ DNA-BstEII Digest N3014SVIAL -20 1 x 0.3 ml 500 µg/ml   Gel Loading Dye, Purple (6X), no SDS B7025SVIAL 25 1 x 1 ml 6 X

Companion Products

• 1 kb DNA Ladder
• 100 bp DNA Ladder
• Gel Loading Dye, Purple (6X), no SDS
• Monarch® Plasmid Miniprep Kit
• Monarch® DNA Gel Extraction Kit
• Monarch® PCR & DNA Cleanup Kit (5 μg)

Materials Sold Separately

• Gel Loading Dye, Purple (6X), no SDS

1. For long term storage, store at -20°C. If samples need to be diluted, use TE or other buffer of minimal ionic strength. DNA may denature if diluted in dH₂0 and subsequently heated. Temperatures > 60°C may cause denaturation.
2. The cohesive ends of fragments 1 and 4 may be separated by heating to 60°C for 3 minutes.
3. 1X Gel Loading Dye, Purple, no SDS:
   2.5% Ficoll®-400
   10mM EDTA
   3.3mM Tris-HCl (pH 8.0@25°C)
   0.02% Dye 1
   0.001% Dye 2

1. Daniels, D.L. et al (1983). Appendix II:Complete Annotated Lambda Sequence. R.W. Hendrix, J.W. Roberts, F.W. Stahl and R.A. Weisberg(Ed.), Lambda-II. 519-676. New York: Cold Spring Harbor Laboratory Press.
2. Forster, A.C. et al. (1985). Nucl. Acids Res. 13, 745-761.

1. Suggested Loading Protocol for N3014 & N3012

1. What are the overhangs on the DNA ladder fragments? Can I end-label them using the T4 polynucleotide kinase (PNK)? What about the Klenow fragment?
2. How can I quantify the amount of DNA in each band of a marker?
3. Why does my Lambda DNA molecular weight marker appear smeared and not represent the correct banding pattern?
4. Can I use Midori Green with the DNA Ladders from NEB?
5. Can I use SYBR^® and/or GelRed^® dyes with the DNA Ladders from NEB?
6. Why is my DNA Ladder floating out the wells and Why are there no bands visible in my DNA ladder gel lane?

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

• N3014S_L_v1

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

• N3014S_L_v1_0831401
• N3014S_L_v1_0831407
• N3014S_L_v1_0821412
• N3014S_L_v1_0821505
• N3014S_L_v1_0831505
• N3014S_L_v1_0821511
• N3014S_L_v1_0831511
• N3014S_L_v1_0821604
• N3014S_L_v1_0831604
• N3014S_L_v1_0821608
• N3014S_L_v1_0831608
• N3014S_L_v1_0821612
• N3014S_L_v1_0831612
• N3014S_L_v1_0821704
• N3014S_L_v1_0831704
• N3014S_L_v1_0831706
• N3014S_L_v1_0831711
• N3014S_L_v1_0831802
• N3014L_v1_10011631
• N3014S_v1_10008859
• N3014S_v1_10038756
• N3014S_v1_10046697
• N3014S_v1_10060478
• N3014S_v1_10070363
• N3014S_v1_10098962
• N3014S_v1_10117622
• N3014S_v1_10141661
• N3014S_v1_10168637
• N3014S_v1_10194196
• N3014S_v1_10236649

The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

• λ DNA-BstEII Digest
• Gel Loading Dye, Purple (6X), no SDS

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
